Product Summary

The RK73H2BTTD24R0F is a thick film resistor with small size and light weight.

Parametrics

Specifications: (1)Resistance:24ohm; (2)Resistance Tolerance:± 1%; (3)Power Rating:250mW; (4)Voltage Rating:200V; (5)Series:RK73H ; (6)Temperature Coefficient:± 100ppm/℃; (7)Resistor Element Material:Thick Film; (8)Resistor Case Style:1206; (9)No. of Pins:2; (10)SVHC:No SVHC (15-Dec-2010).

Features

Features: (1)Small size and light weight; (2)Excellent heat resistance and weather resistance are ensured by the use of metal glaze thick film; (3)High stability and high reliability with the triple-layer structure of electrode; (4)Applicable to various kinds of automatic mounters for taping, etc; (5)Suitable for both flow and reflow solderings; (6)Products with lead free termination meet EU-RoHS requirements. EU-RoHS regulation is not intended for; (7)Pb-glass contained in electrode, resistor element and glass.

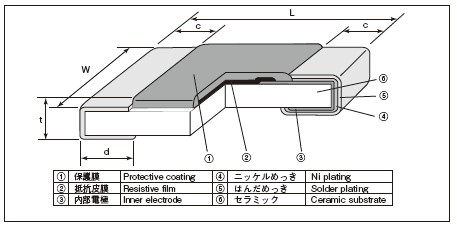

Diagrams

RK73A
RK73A
