Product Summary

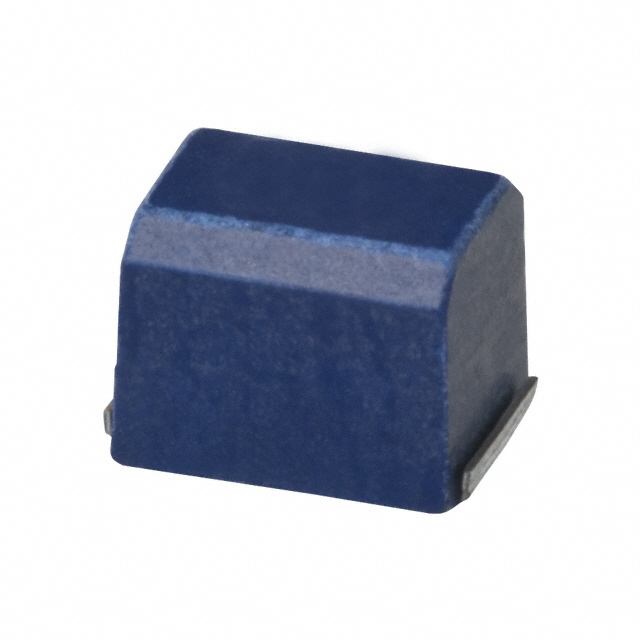

The NLC453232T-1R0K-PF is a SMD inductor(coil) for power line. It is used in electronic equipment including xDSL and mobile base stations, audio-visual equipment including TVs and VCRs, and Other electronic equipment including HDDs and ODDs.

Parametrics

Specifications: (1)Inductance: 1 uH; (2)Tolerance: 10 %; (3)Maximum DC Current: 1050 mAmps; (4)Maximum DC Resistance: 0.11 Ohms; (5)Self Resonant Frequency: 200 MHz ; (6)Q Minimum: 10; (7)Dimensions: 3.2 mm W x 4.5 mm L x 3.2 mm H ; (8)Shielding: Unshielded ; (9)Termination Style: SMD/SMT; (10)Packaging: Reel; (11)Series: NLC; (12)Standard Pack Qty: 500.

Features

Features: (1)The NLC series feature low DC resistance and high current handling capacities, making them ideal for power supply line applications; (2)The product has good heat durability that withstands lead-free compatible reflow soldering conditions; (3)Lead-free material is used for the plating on the terminal; (4)The product uses metal terminals, which realize excellent connection reliability; (5)From 1μH to 330μH, all of the products in the E-12 series are K(±10%) tolerance products; (6)It is a product conforming to RoHS directive.

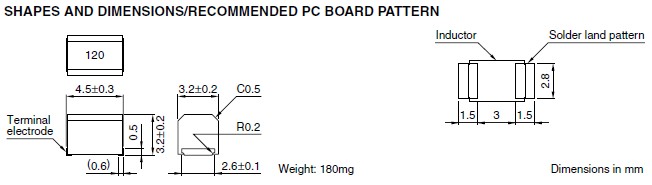

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
NLC453232T-1R0K-PF
NLC453232T-1R0K-PF

TDK

Power Inductors 1.0uH 10%

Data Sheet

0-1: $0.35
1-10: $0.29
10-100: $0.24
100-250: $0.21
250-500: $0.10
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
NLC453232T-100K
NLC453232T-100K


INDUCTOR 10UH 10% 453232

Data Sheet

Negotiable
NLC453232T-100K-PF
NLC453232T-100K-PF

TDK

Power Inductors 10 UH 10%

Data Sheet

0-1: $0.35
1-10: $0.29
10-50: $0.26
50-100: $0.24
100-500: $0.12
NLC453232T-101K
NLC453232T-101K


INDUCTOR 100UH 10% 453232

Data Sheet

Negotiable
NLC453232T-101K-PF
NLC453232T-101K-PF

TDK

Power Inductors 100uH, 10%, 0.18A

Data Sheet

0-1: $0.39
1-50: $0.29
50-100: $0.26
100-500: $0.11
NLC453232T-120K-PF
NLC453232T-120K-PF

TDK

Power Inductors 12uH 10% 4.5x3.2x3.2mm

Data Sheet

0-1: $0.37
1-50: $0.28
50-100: $0.25
100-500: $0.11
NLC453232T-121K-PF
NLC453232T-121K-PF

TDK

Power Inductors 120uH 10% 4.5x3.2x3.2mm

Data Sheet

0-1: $0.37
1-50: $0.28
50-100: $0.25
100-500: $0.11
