Product Summary

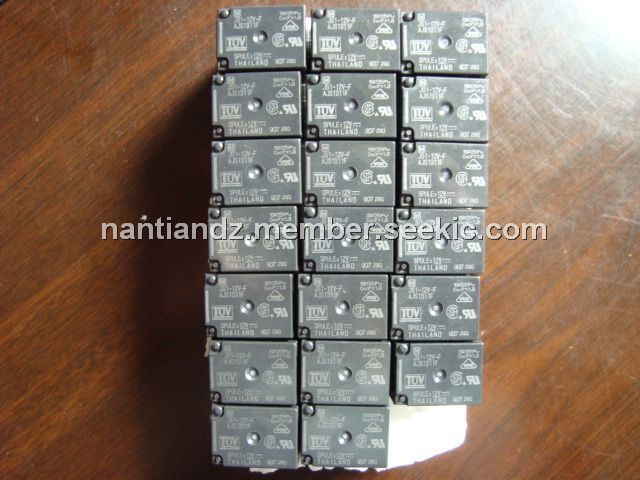

The JS1-12V-F is a miniature pc board type power relay.

Parametrics

Characteristics: (1)Max. operating speed: 20 cpm; (2)Types: Standard type; High power type; (3)Initial insulation resistance: Min. 100 MΩ (at 500 V DC); (4)Initial breakdown voltage: 750 Vrms for 1 min Between open contacts; 1,500 Vrms for 1 min Between contacts and coil ; (5)Operate time(at nominal voltage): Approx. 10 ms; (6)Release time(without diode) (at nominal voltage): Approx. 10 ms; (7)Temperature rise (at nominal voltage): Max. 35℃, resistive, nominal voltage applied to coil. Contact carrying current: 10A, at 85℃ 185°F; (8)Shock resistance: Functional: Min. 98 m/s2 {10 G}; Destructive: Min. 980 m/s2 {100 G}; (9)Vibration resistance: Functional: Approx. 98 m/s2 {10 G}, 10 to 55 Hz at double amplitude of 1.6 mm; Destructive: Approx. 117.6 m/s2 {12 G},10 to 55 Hz at double amplitude of 2 mm.

Features

Features: (1)Miniature size with universal terminal footprint; (2)High contact capacity: 10 A; (3)Class B coil insulation type available; (4)TV-5 type available (Standard type): 1 Form A type:TV-5; 1 Form C type: TV-5 (N.Oside only); (5)VDE, TUV also approved; (6)Sealed construction for automatic cleaning (Standard type).

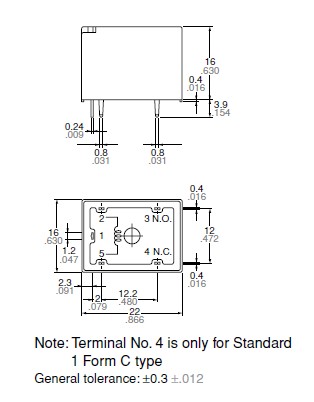

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
JS1-12V-F
JS1-12V-F

Panasonic Electric Works

General Purpose / Industrial Relays 10A 12VDC SPDT SEALED PCB

Data Sheet

0-1: $0.94
1-25: $0.85
25-50: $0.80
50-100: $0.68
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
JS1-12V
JS1-12V

Panasonic Electric Works

General Purpose / Industrial Relays 10A 12VDC SPDT SEALED PCB

Data Sheet

Negotiable
JS1-12V-F
JS1-12V-F

Panasonic Electric Works

General Purpose / Industrial Relays 10A 12VDC SPDT SEALED PCB

Data Sheet

0-1: $0.94
1-25: $0.85
25-50: $0.80
50-100: $0.68
JS1-12V-TV
JS1-12V-TV

Panasonic Electric Works

General Purpose / Industrial Relays 10A 12VDC SEALED PCB RELAY POWER

Data Sheet

0-1: $0.84
1-25: $0.77
25-50: $0.68
50-100: $0.58
JS1-12V-Y1
JS1-12V-Y1

Panasonic Electric Works

General Purpose / Industrial Relays JS Relay (Y1 Rating)

Data Sheet

Negotiable
JS1-12V-Y1-F
JS1-12V-Y1-F

Panasonic Electric Works

General Purpose / Industrial Relays 10A 12VDC SEALED PCB RELAY POWER

Data Sheet

0-1: $0.92
1-25: $0.85
25-50: $0.76
50-100: $0.64
JS1-15V
JS1-15V

Panasonic Electric Works

General Purpose / Industrial Relays 10A 15VDC SEALED PCB RELAY POWER

Data Sheet

0-1: $0.84
1-25: $0.77
25-50: $0.68
50-100: $0.58
