Product Summary
The 06035A181GAT2A is a capacitor of C0G (NP0) dielectric. C0G (NP0) is the most popular formulation of the temperature-compensating, EIA Class I ceramic materials. The 06035A181GAT2A contain neodymium, samarium and other rare earth oxides. C0G (NP0) ceramics offer one of the most stable capacitor dielectrics available. Capacitance change with temperature is 0 ±30ppm/℃ which is less than ±0.3%℃ from -55℃ to +125℃. Capacitance drift or hysteresis for C0G (NP0) ceramics is negligible at less than ±0.05% versus up to ±2% for films. Typical capacitance change with life is less than ±0.1% for C0G (NP0), one-fifth that shown by most other dielectrics. C0G (NP0) formulations show no aging characteristics.
Parametrics
Absolute maximum ratings: (1)Operating Temperature Range: -55℃ to +125℃; (2)Capacitance Within specified tolerance, Q <30 pF: Q≥ 400+20 x Cap Value; (3)Capacitance Within specified tolerance, ≥30 pF: Q≥ 1000; (4)Insulation Resistance: 100,000MΩ or 1000MΩ - μF, whichever is less.
Features
Features: (1)(L) Length mm (in.): 1.60 ± 0.15 (0.063 ± 0.006); (2)(W) Width mm (in.): 0.81 ± 0.15 (0.032 ± 0.006); (3)(t) Terminal mm (in.): 0.35 ± 0.15 (0.014 ± 0.006); (4)Dielectric Strength: No breakdown or visual defects.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

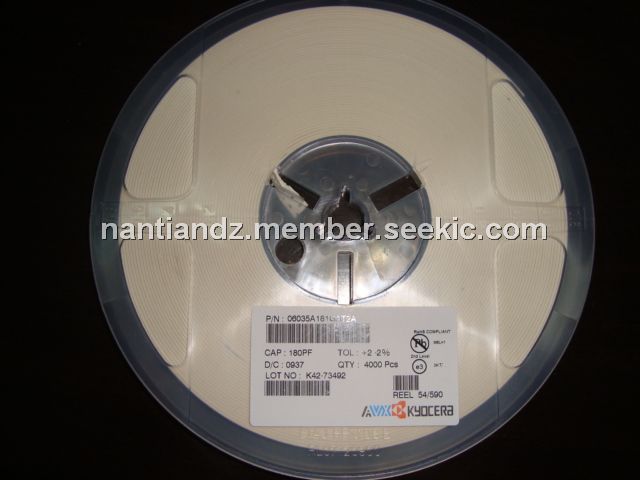

06035A181GAT2A |
AVX |
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 180pF 50volt 2% 0603 C0G |
Data Sheet |
|
|
|||||||||||||
