Product Summary

The VJ1210Y474KXBAT is a surface mount multilayer ceramic chip capacitor for boardflex sensitive applications.

Parametrics

Electrical specifications: (1)Operating Temperature: - 55 ℃ to + 125 ℃; (2)Capacitance Range: 100 pF to 1.8 μF; (3)Voltage Rating: 16 Vdc to 3000 Vdc; (4)Temperature Coefficient of Capacitance (TCC):; (5)X7R: ± 15 % from - 55 ℃ to + 125 ℃, with 0 Vdc applied; (6)Dissipation Factor: 6.3 V, 10 V ratings: 5 % max. at 1.0 Vrms and 1 kHz; 16 V, 25 V ratings: 3.5 % max. at 1.0 Vrms and 1 kHz; 50 V ratings: 2.5 % max. at 1.0 Vrms and 1 kHz; (7)Aging Rate: 1 % maximum per decade; (8)Insulation Resistance (IR): At + 25 ℃ and rated voltage 100 000 MW minimum or 1000 WF, whichever is less; at + 125 ℃ and rated voltage 10 000 MW minimum or; (9)100 WF, whichever is less.

Features

Features: (1)Surface mountable, precious metal technology, wet build process; (2)OMD-Cap (Open Mode Design) reduce the risk of short or low IR because of board flex cracks; (3)Efficient low-power consumption, ripple current capaple to 1.2 Arms at 100 kHz; (4)High Voltage breakdown compared to standard design; (5)Available with 100 % voltage condition, process code "H"(Is available for 630 V and lower); (6)Excellent reliability and thermal shock performance; (7)Available with polymer termination for increase resistance to board flex cracking; (8)Protective surface coating of high voltage capacitors maybe required to prevent surface arcing.

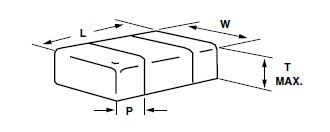

Diagrams
